MP-D2 MK1 & MK2 AK4490 AK4497 XMOS BALANCED DAC DSD DOP 384Khz
Product Code: MP-D2
Availability: Out Of Stock
Availability: Out Of Stock
Price: $899.00 USD
*Discontinued. Firmware upgrade and new DAC modules support will continue.
Latest MCU Firmware Upgrade: MP-D2-Firmware-2020-10-28.zip, MP-D2-Firmware-2019-4-25.zip, MP-D2-Firmware-10-9.zip, MP-D2-Firmware-8-15.zip
We are excited to announce Musical Paradise MP-D2 MK2 DAC. The first DAC in the world supports user changeable DAC modules. At this moment, it can support AKM AK4490，AKM flagship AK4497 and ESS flagship ES9038PRO DAC modules. Since MP-D2 MK2 is a future-proof modular design DAC, we will continuously develop more new DAC modules in the future.
Musical Paradise fans around the world were anticipating MP-D2 for a long time. We put in our best effort to pursuit the excellence of MP-D2. The moment you listen to MP-D2, you know you have never experienced anything like it. With native DSD support, it brings you the most high definition listening journey in a powerfully vivid way. Take a deeper look, you will find more innovation.
USB and Clock Isolation
USB line interference form dirty computer side always affect DAC performance. MP-D2 introduces innovative isolation technology to completely isolate between the dirty PC side and the clean DAC side, so it gives you the most pure USB PC-HIFI performance you have never experienced before.
Power Supply

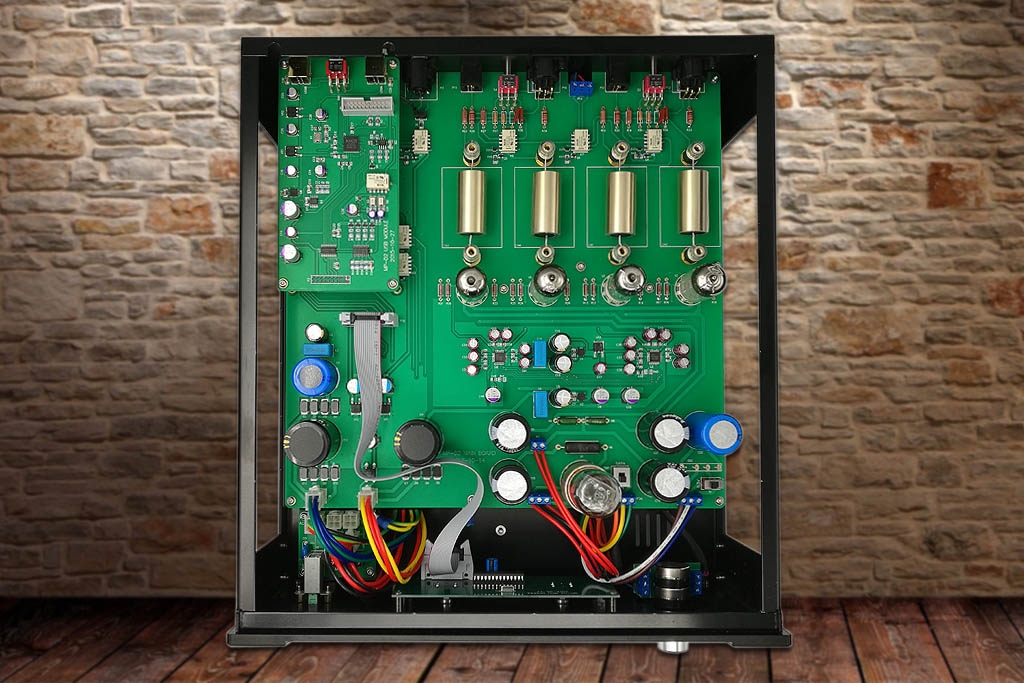

150W toroidal transformer for analog section. Additional 80W toroidal transformer for digital sections. They provide more than 6 times power pool redundancy to support to most critical surge current requirement. They are magnet shielded in the compartment underneath the motherboard. The most advanced lowest noise LDO regulators are employed. In addition, more than 50000uf of total filtering caps are onboard. All of these deliver the highest standard of power performance once found only in leading edge lab equipment.
Technology

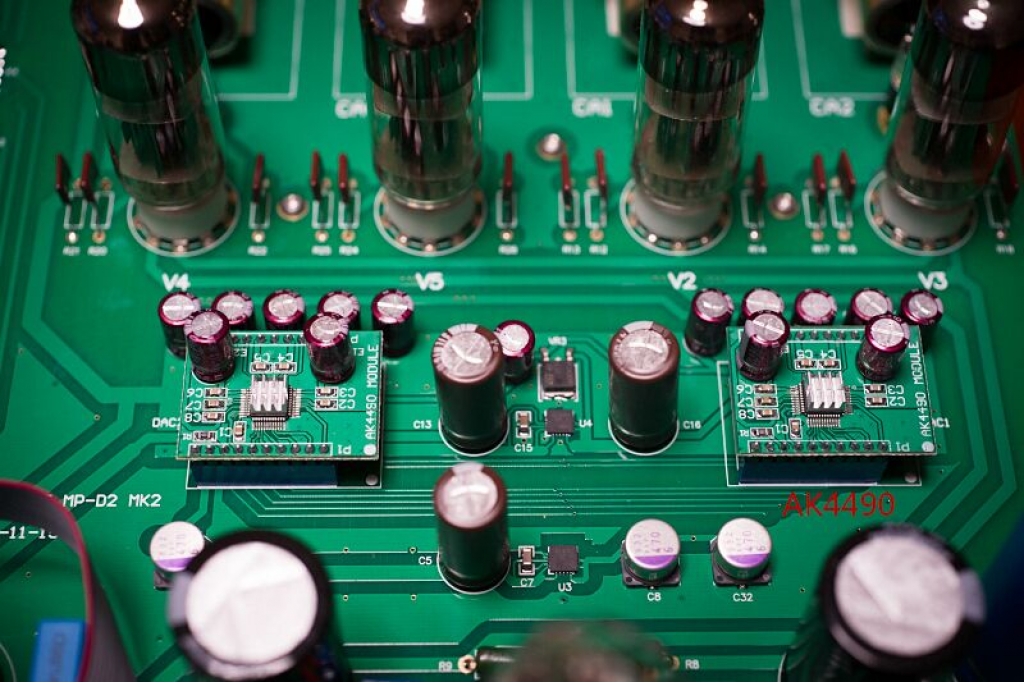

MP-D2 is powered by latest XMOS U8 asynchronous USB chip and 2x AKM flagship VERITA AK4490 32bit DAC chips. XMOS Incorporated with three super high precision TCXO clocks deliver lowest jitter performance. Dual AK4490 in mono block configuration and custom voltage setting deliver 126db dynamic range performance. MP-D2 supports PCM up to 384Khz and DSD64, DSD128, and DSD256.
Analog Output Stage - Tubes and Caps
MP-D2 output stage only employs vacuum tubes. No solid state component, zero feedback and fully balanced circuitry. Tube rectification circuit delivers more analog sounding. The unique design of the MP-D2 supports multiple series of signal and rectifier tubes. It is also the first one in the world offering user changeable output stage coupling capacitors. No soldering is required! You owns the freedom to select the tubes and caps. You have never felt anything like it.
Exterior

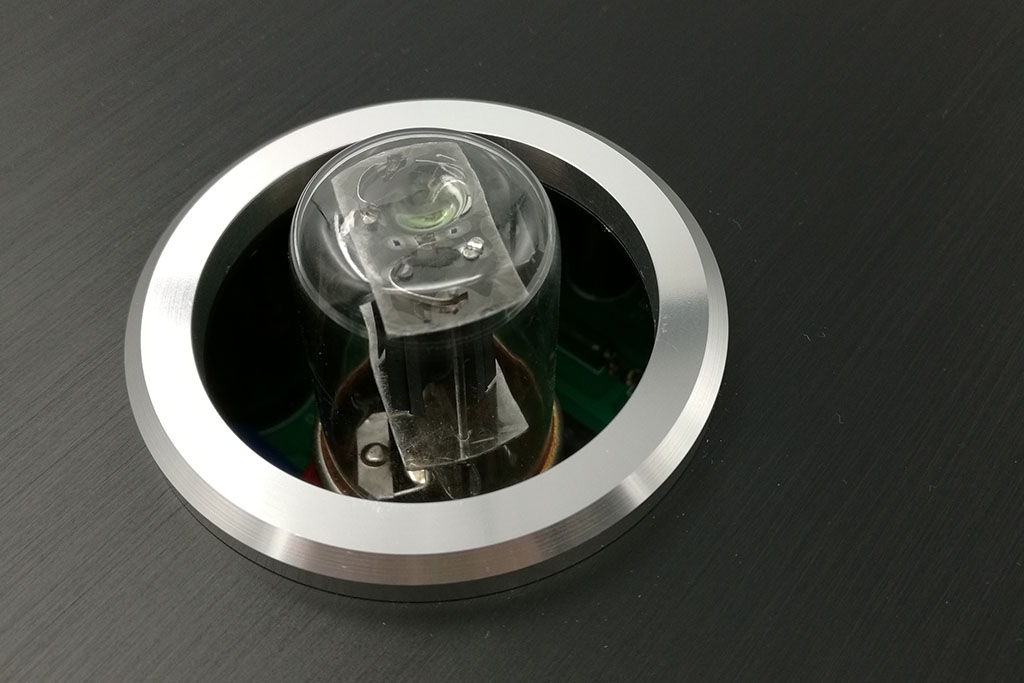

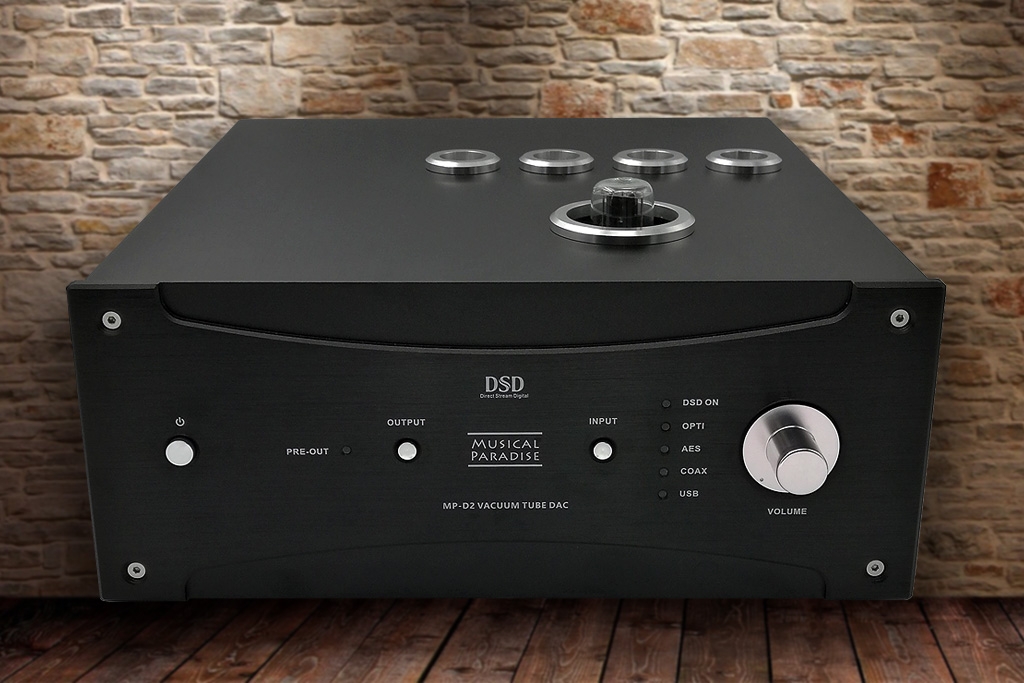

The full chassis is built with aluminum alloy. Even the legs, knobs, tube protection rings and buttons are made with solid aluminum alloy. The simplicity of front panel design allows you get used to it in minutes.
How it sound in General?
Extremely dynamic, vivid and detailed sounding. Excellent bass weight and extension.
Smooth, liquid and airy mid-range and high. Deep and wide sound-stage.
Features and Specs
•Asynchronous transfer mode for dual USB input.
•DSD and PCM input over USB.
•USB and clock isolation.
•Short delay sharp roll off 50Khz digital filter.
•AES, Optical, Coaxial digital inputs.
•Zero-feedback, fully-balanced full tube circuitry.
•Selectable low gain and high gain output.
•Power-line RFI filter.
•Pre-amp output feature (10V Max)
•Tube Rectification
•Signal tubes - 6.3V series: 6N11 (stock), 6H6, 6H30, E88CC, E188CC，6922, 6DJ8.
12.6V series: 12AU7, 12BH7, E80CC.
•Rectifier tubes - 6.3V series: 6Z5P (stock), 6X5.
5V series: 5R4, 5AR4, 5U4G, 5Y3, GZ34
Frequency Response
DC to 50khz
DR / SN
126 dB
Output Level
6 volts balanced XLR, 3 volts single-ended RCA
Input
2x USB
PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, (384kHz only in Mac and Linux). DSD64, DSD128, (DSD256 AK4490 & AK4497)
1x Coax, 1x AES, 1x Optical
PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Dimensions
W 34.5cm x D 38cm x H 15cm
Gross Weight
12.5 kg
Fully-Configured Foobar2000, instruction and driver: MP-D2.zip
Manual: MP-D2-Manual
Web Reviews: AudioReview.ca
