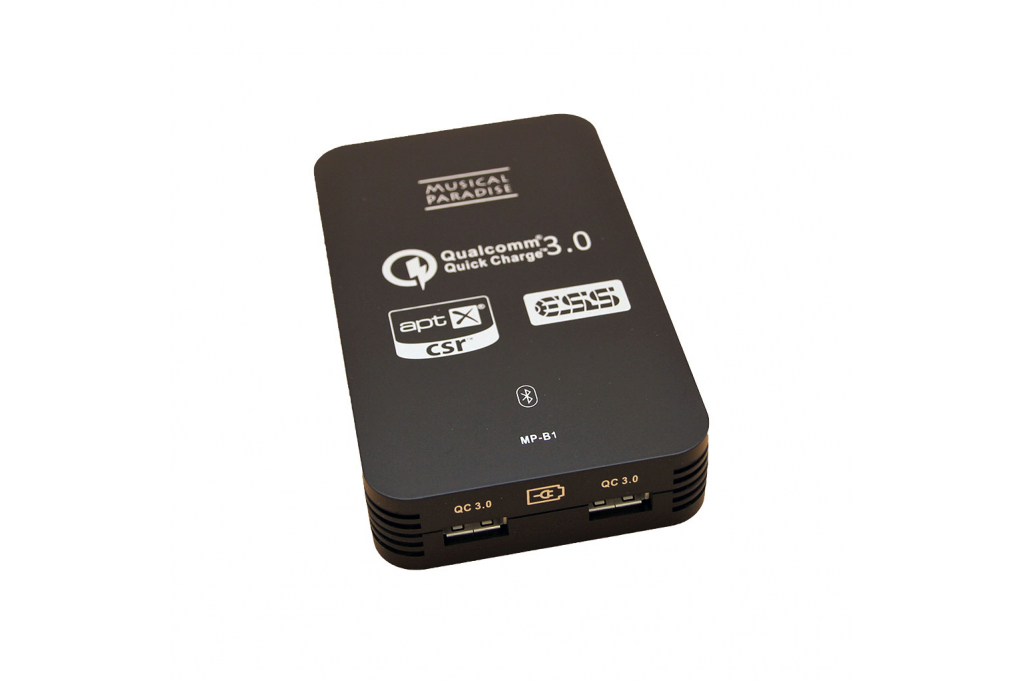

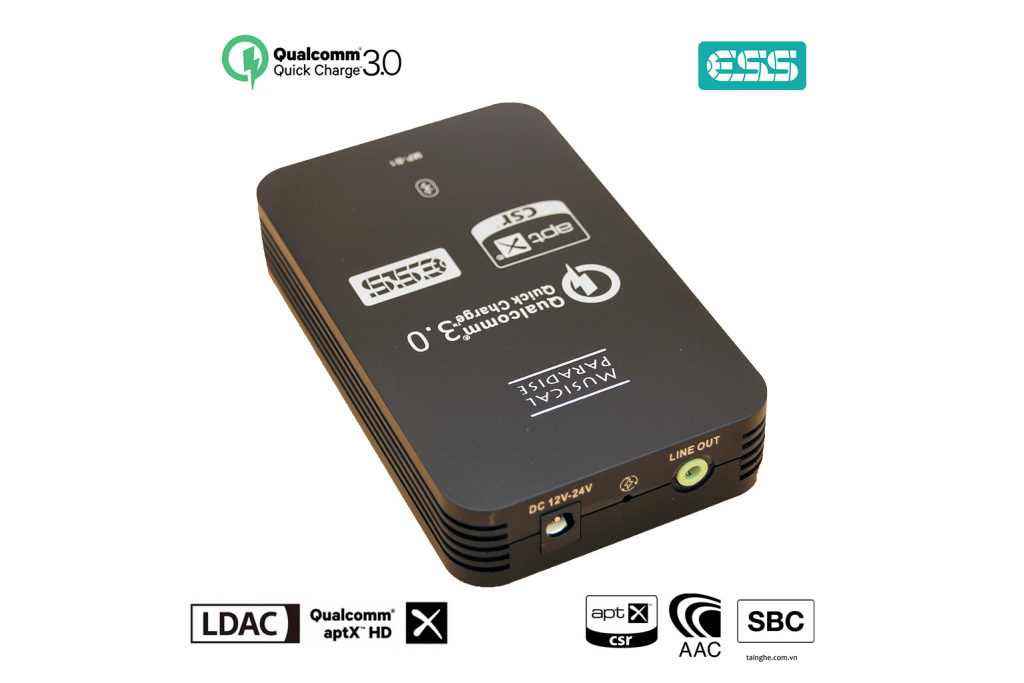

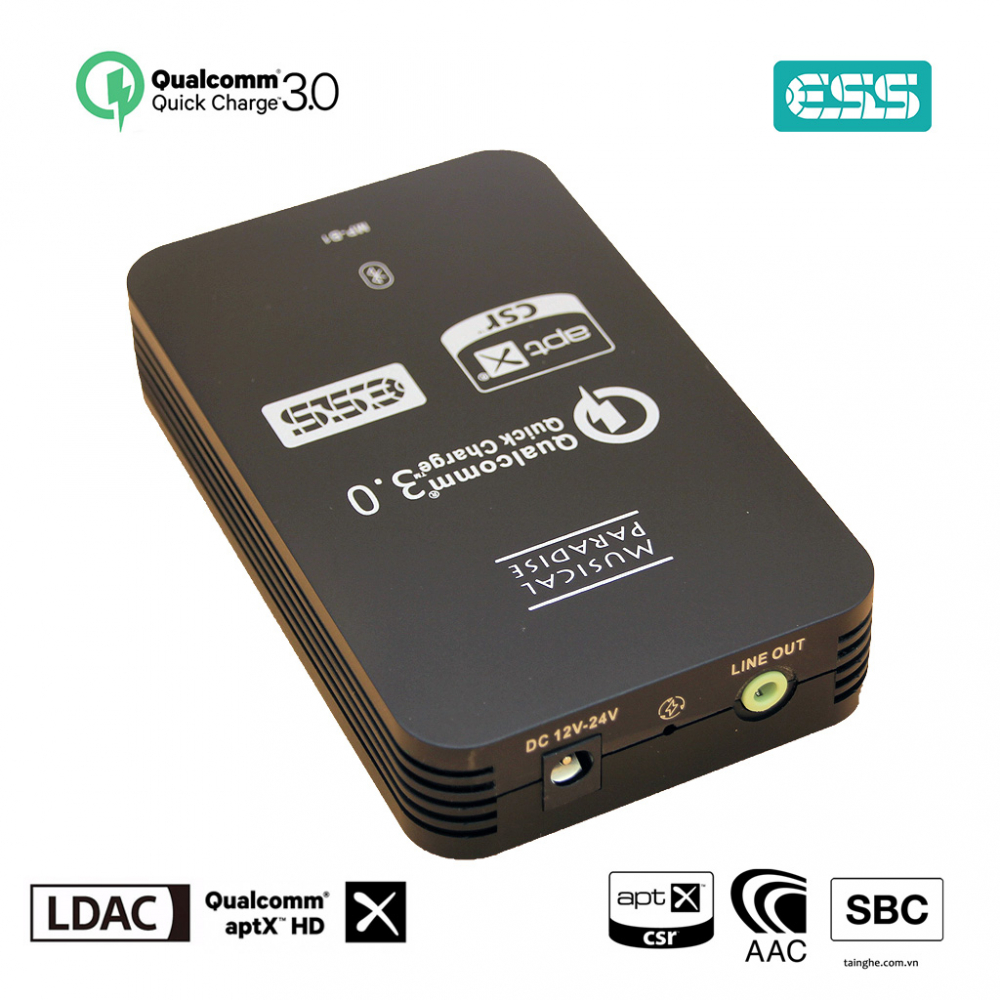

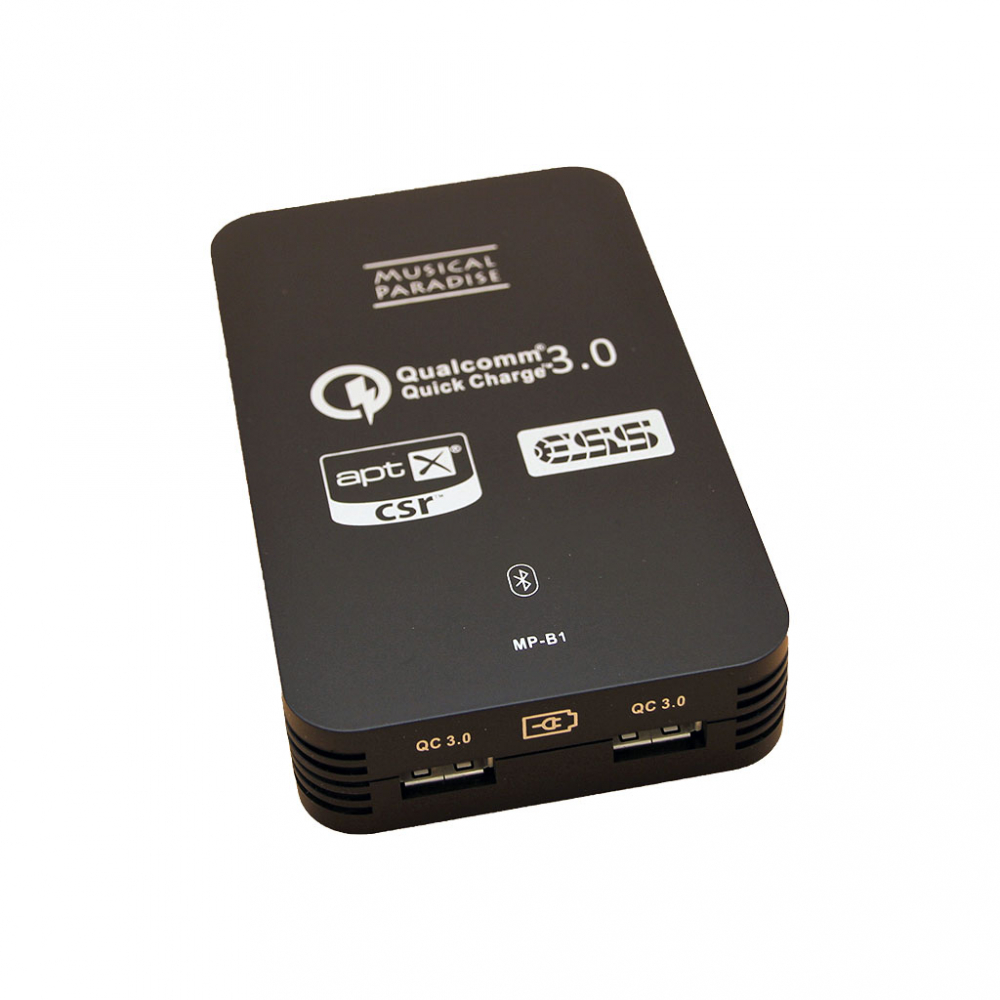

MP-B1 MK2 Bluetooth 5.0 APT-X, APT-X HD, LDAC Audio Receiver DAC

MP-B1 MK2 employs Qualcomm CSR8675 Bluetooth 5.0 chip to support APT-X, APT-X HD and LDAC Hi-Res blutooth audio reception, and uses ESS Sabre ES9023 24Bit DAC and SiTime low jitter clock to provide the audience high fidelity Bluetooth audio listening experience when playing music from a smart phone, tablet and computer. For convenience, it also have two USB quick-charge ports to charge mobile devices. Both USB ports support Android QC3.0, Apple and Huawei quick charge technology. Each port can deliver up to 3A current, so it can charge your phones and tablets much faster to save you valuable time, especially in cars. MP-B1 MK2 is not only used for home audio, but also used for car audio. It adds Hi-Res Bluetooth wireless music playback feature to your car with AUX input. Even if your car comes with factory Bluetooth input, since it uses low res SBC/AAC codec, no dedicated external DAC and low jitter clock, the sound quality is way worse than MP-B1 MK2 can provide. MP-B1 MK2 is guaranteed to sound significantly better.

Technical Highlights

1. Qualcomm CSR8675 APT-X, APT-X HD, LDAC Bluetooth 5.0 Receiver

2. Dedicated ESS Sabre ES9023 24Bit Hi-Fi Digital to Analog convertor (DAC)

3. High precision SiTime TCXO as DAC master clock to provide low jitter audio performance

4. DCDC isolator and low noise LDO regulators for DAC and Bluetooth circuits to eliminate noise from dirty car power.

5. Wide DC input voltage, 12-24V is supported.

6. Android QC3.0, Apple and Huawei quick charge

7. High performance DCDC power regulator for each USB charging port to guarantee quick charge even if two phones are charged simultaneously

8. HiFi grade Panasonic, Sanyo OS, ELNA capacitors

9. Built-in high gain antenna. No sticking out antenna to save valuable car space.

Specification

Package Contents

Car kit option: Cigarette lighter plug cable, 3.5mm to 3.5mm audio cable for car AUX audio input.

Home kit option: AC 100-240V to DC 24V 2A power supply, 3.5mm to RCA audio cable.

Full kit option: Includes everything in both car kit and home kit.
