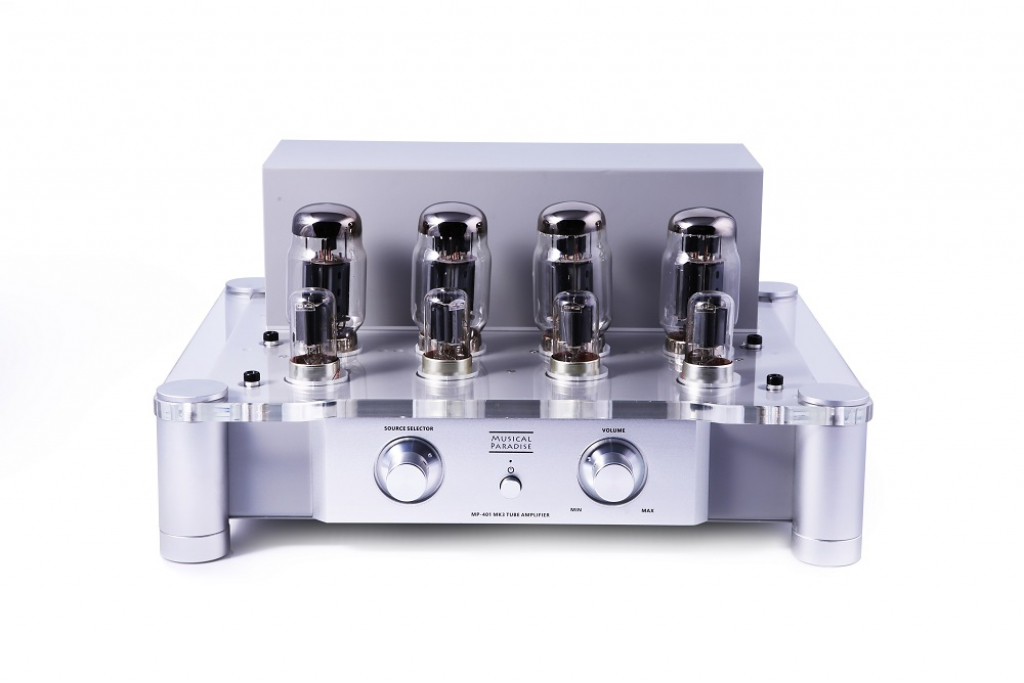

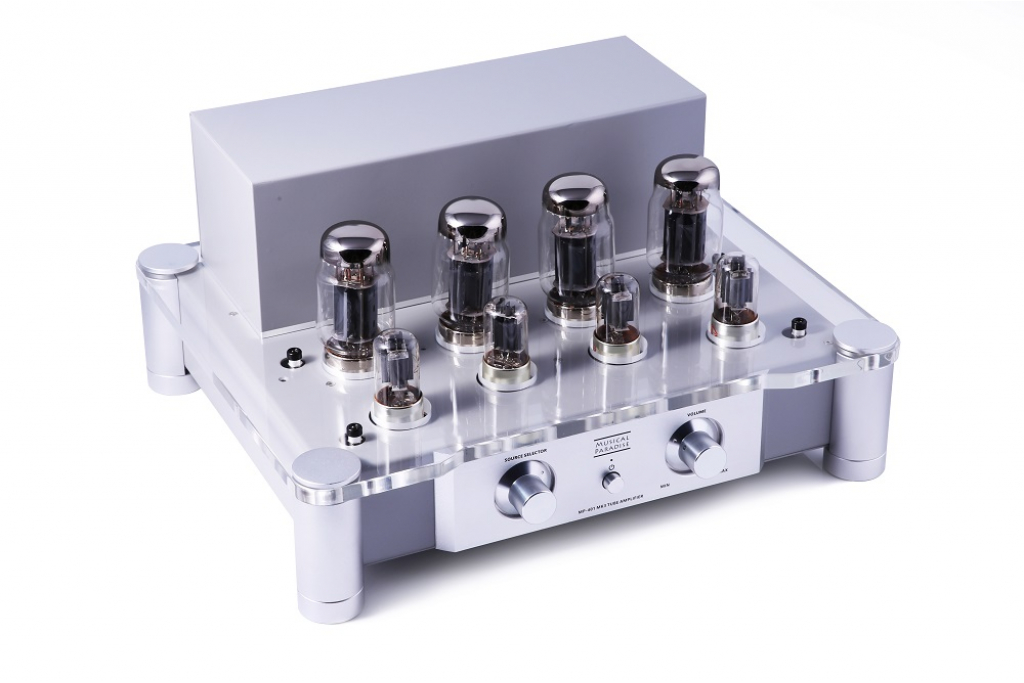

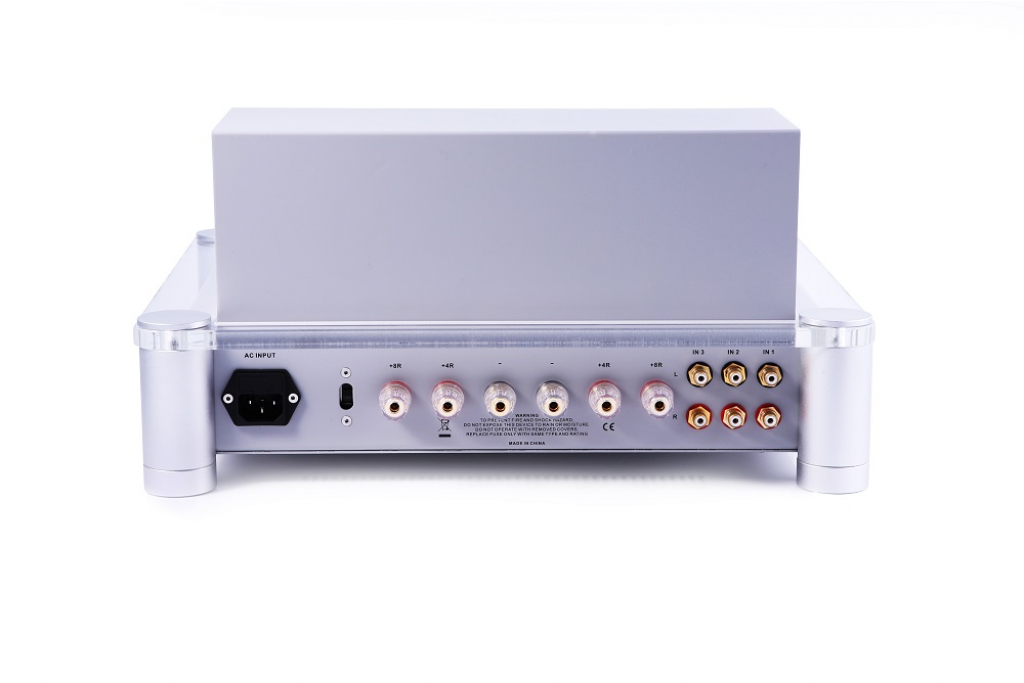

MP-401 MK3 EL34 KT88 Tube Amplifier

MP-401 MK3 EL34 KT88 Tube Amplifier
MP-401 MK3 EL34 KT88 Tube Amplifier MP-401 MK3 EL34 KT88 Tube Amplifier
Product Code: MP-401-MK3
Availability: Out Of Stock
Price: $699.00 USD

Available Options


Accessories:


* Power Tubes:



Shipping:


Qty:
   - OR -

The MP-401 MK3 is the latest upgrade version of MP-401 tube amplifier which was first released in 2008. If you are looking for a more powerful tube amplifier than MP-301 and still affordable, MP-401 MK3 is the best answer.

Features:

  • One amplifier supports 6L6 (6P3P), KT66, EL34, KT77, KT88, 6550 and KT120 power tubes.
  • Auto biasing design that eliminates manual adjustment.
  • Class AB Push Pull; Zero negative feedback.
  • Built with high grade genuine components.
    (US Military Vishay Dale resistors. RIFA 450, Rubycon, Philips BC capacitors.)
  • 24K gold plated RCA input and speaker terminals.
  • Transformers are made with oxygen free copper wire and Z11 silicon core.


Specifications:

Model

MP-401 MK3

Tubes (Default)

EL34 x 4, 6H8C（6SN7）x 2，6N7 x 2

Tubes (Optional)

KT88 x 4, 6550 x 4, KT120 x 4, 6L6 x 4

Topology

Class-AB Push Pull

Output Power (RMS)

25W x 2

Output impedance

4Ω- 8Ω Speaker

Frequency Response

15Hz - 30Khz

T.H.D

<1% (1Khz)

S.N.R

88db

AC Input

110-120V / 220-240V 50-60Hz Worldwide Use

Weight

20KG

Dimension

(W 35CM x L 32CM x H 17CM)

Warranty

1 Year Limited (One month for tubes)



Tube Replacement Guide:

Center Front

6N8P, 6H8C, 6SN7 x 2

Outer Front

6N7 x 2

Back Row

EL34 x 4, KT88 x 4, KT120 x 4



Quick Setup Manual
